Showroom » Scag » STT61V-29KA-DFI-SS Turf Tiger™ Zero-Turn Rider
Model Quick Search

Call for Price
(219) 838-3600

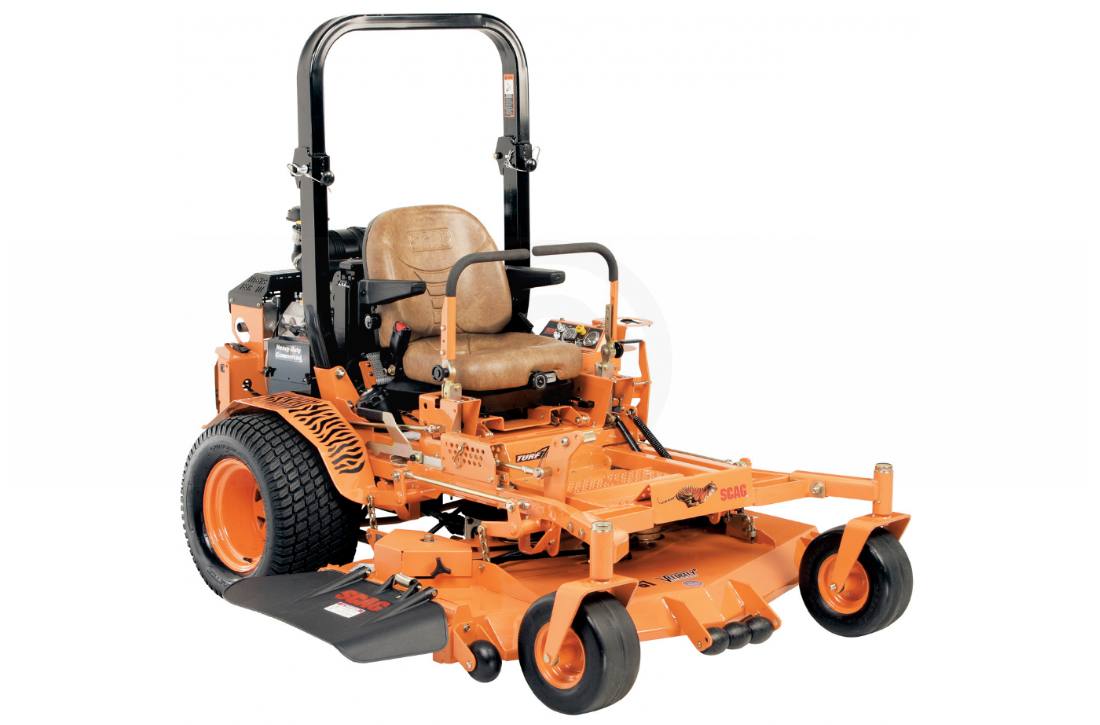

2010 Scag Power Equipment STT61V-29KA-DFI-SS Turf Tiger™ Zero-Turn Rider
Request a Quote Financing Calculator Financing Form
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Since its introduction in 1998, the Turf Tiger™ has been in a class by itself. There is no competition. Period.

The Scag Turf Tiger can cover major ground with its productive 12 mph ground speed (29hp and larger models) and large 10 gallon fuel tank. The simple, trouble-free shaft drive cutter deck means minimum maintenance requirements and a wide range of cutting heights. The double tube steel main frame gives the mower incredible strength and durability.

From the heavy-duty, Tri-Plate Velocity Plus™ cutter decks, to the various high-power, fuel efficient engine options, there's a Tiger that will increase your productivity and send your competition running for cover! Contact your local Scag dealer for a field demonstration today and see for yourself how the Scag Turf Tiger stands in a class by itself, above the competition.

    Product Highlights
    • 61" Velocity Plus Cutter Deck
    • 16 cc Heavy-duty hydraulic drive pumps
    • Command Comfort Operating Station
    • Aluminized exhaust system
    • Foot pedal cutter deck lift system
    • 10 gallon fuel tank
    • Double-tube steel main frame
    • Heavy-duty blade drive spindles
    • Operator friendly instrument panel
    Product Details
    • Heavy-duty hydraulic drive system includes dual 16cc Hydro-Gear pumps, and Ross wheel motors for reliable, Zero Turn maneuverability. Hydro-Gear 16cc hydraulic pumps provide smooth, positive and reliable power to the drive wheels. Extra large input bearing, input shaft and internal components add to reliability and performance. Built-in pressure relief valves reduce internal pressure spikes and add to pump life. 29hp gas models feature a cooling fan mounted directly to the pumps providing additional cooling for added pump life.
    • Auxiliary hydraulic oil coolers keep oil temperatures within a safe operating level and adds to hydraulic system component life.
    • Up to 12 MPH forward speeds and 5 MPH reverse speeds keep productivity at a maximum.
    • Driveshaft driven cutter deck eliminates belt slip and provides increased reliability and longevity compared to a belt drive system.
    • Heavy-duty blade drive spindles provide reliable performance season after season. The Scag spindle easily handles the high horsepower and torque requirements of this powerful mower. Three year limited warranty.
    • 61" Velocity Plus™ cutter deck. Match that with a 29hp DFI liquid-cooled Kawasaki engine.
    • The 29hp Kawasaki DFI (digital fuel injection) , and the 31hp Kohler Aegis EFI (electronic fuel injection) are both incredibly powerful and efficient powerhouses. These engines will start easier and are more fuel efficient than carbureted models, reducing overall operating cost. They are also liquid-cooled for long life when compared to the other air-cooled fuel-injected engines on the market today.
    • Single fuel tank, 10 gallon capacity keeps you in the field cutting grass.Fuel tank is positioned low, in the center of the machine, enhancing the mower's low center-of-gravity and giving it excellent hillside stability. Fill up in the morning and cut all day long.
    • Double tube steel main frame construction delivers superior strength and ensures years of trouble free service. This design is much stronger than "bolt together" frame designs. The main frame was designed for an ultra-low center-of-gravity to increase hillside stability.
    • The Ogura GT3.5 PTO Clutch Brake delivers 250 ft. lbs. of starting and stopping torque. Adjustable airgap ensures long component life.
    • Standard equipment auxiliary canister air filter system on all Turf Tigers. This provides increased service intervals and longer engine life.
    • Engine radiator is mounted in front of the engine, as the engine manufacturer intended. Having the radiator positioned behind the seat offers extra protection against impacts and foreign material. Hydraulic oil cooler is also mounted in front of the radiator for maximum airflow and heat dissipation.
    • Easily adjust cutting heights from the seat with the convenient, easy to lift, 3-position adjustable foot pedal. Wide range of adjustment from 1" to 6" in 1/4" increments (21 different cutting height settings).
    • Custom-Cut Baffle allows you to customize the cutter deck to your individual cutting conditions.
    • Deck leveling adjustment bracket allows for easy in-the-field deck leveling adjustment.
    • Command-Comfort Operator's Station provides unmatched fatigue-fighting comfort (diesel, and 29hp & larger gas models). Quick-Fit control levers, torsion spring suspension seat, and 3-position deck lift foot pedal combine to provide unprecedented levels of adjustability and ergonomics.
    • Quick-Fit steering control levers with dual gas-charged dampers for smooth, precise responsiveness. Steering levers are adjustable (without tools) to fit a wide range of operator sizes, increasing operator comfort.
    • Suspension seat with cushioned armrests is adjustable to individual operator weights for increased support and reduced operator fatigue (standard on diesel, and 29hp+ gas models). High-back Soft-Ride seat standard on 27hp models; Suspension seat optional.
    • Convenient cup holder keeps beverage securely in place and within easy reach.
    • Extra large 24 inch drive tires and up to 13 x 6 - 6 caster wheels ensure better traction, less turf tearing and easy curb climbing.
    • Flat-Free front caster tires virtually eliminate downtime and expense caused by flat front tires.
    • Tapered roller bearings are utilized in the front caster wheels and in the caster pivots for durability and reduced maintenance.
    • "Split-Steel" pulleys are used on load carrying areas like the cutter deck spindles and pump drive systems. Split steel pulleys are stronger than cast iron or stamped pulley designs. Our pulleys are strong for long life and lightweight for reduced inertia and decreased wear on the cutter deck drive system.
    • No plastic pulleys - Some [other brands] actually use plastic pulleys on their mowers. Not Scag. All Scag pulleys are made from metal. Plastic is for toys.
    • High-quality bearings and bearing debris guard on idler pulleys ensure long, reliable service.
    • Operator friendly instrument panel includes an ammeter, ignition switch, mower engagement switch, water temperature gauge (liquid-cooled engines only), separate choke and throttle controls. The hour meter is conveniently located at the rear of mower near the engine.
    • User-friendly mower design allows quick, clean access to the engine and filters, for easy maintenance. Rear access panel exposes self adjusting PTO, and hydraulic pump drive belts.
    • Spring loaded idler arms effortlessly keep belts in constant adjustment for maximum life and minimum maintenance.
    • Excellent hillside stability due to an exceptionally low center-of-gravity and extra wide stance.
    • The Scag "Simply the Best" commercial warranty stands behind you and your mower for years of profitable service.
    • Marbain cutter blades stay sharp longer for reduced maintenance.
    • High quality electrical components such as switches, wiring and harness looms are used throughout the Scag mower line for trouble-free service.
    • Foldable Rollover Protection System (ROPS) is standard equipment and easily fits into enclosed trailers. ROPS provides additional operator safety. Retractable seatbelts for added convenience.
    • Digital SmartSense hour meter displays maintenance reminders to help ensure that routine service is completed.
    • There are many, time saving, money making accessories for the Turf Tiger like the Tiger Striper lawn striping kit, spindle driven grass catchers, halogen light kits and more.
    Specifications
    • Engine: 29 hp Kawasaki, liquid-cooled, V-Twin, horizontal shaft, Digital Fuel Injection
    • Fuel Capacity/Design: 10 gal., single fuel tank mounted low in the center of the mower to lower the center-of-gravity and improve hillside stability and traction.
    • Travel Control: Twin “Quick-Fit in. steering controls with gas dampers for smooth, precise maneuverability. Adjustable to fit various operator sizes.
    • Ground Speed: 12 mph forward, 5 mph reverse
    • Main Frame Construction: Double tube, steel frame, full-length, fully-welded
    • Drive Tires: 24 x 12 - 12, 4 ply
    • Caster Tires: 13 x 6.5 - 6, 4 ply; Flat-Free, semi-pneumatic
    • Caster Wheel Bearings: Tapered roller bearings
    • Front Caster Arm Design: Bolt-on for easy replacement if necessary
    • Hydraulic Pumps: Dual Pumps; 16cc displacement, Hydro-Gear
    • Hydraulic Oil Cooler: Yes - 4 qt system capacity with auxiliary oil cooler
    • Hydraulic Oil Filter: 10 micron
    • Hydraulic Wheel Motors: Dual 15 ci Ross
    • Electrical System: 12 Volt battery, 300 cca. Alternator, 15-40 amp charging. Solenoid shift starter.
    • Belts: Kevlar cord. Self-adjusting, spring-loaded, self-tightening
    • Drive/Load Pulleys: Split-steel design -- stronger and lighter weight than cast-iron
    • Instrument Panel: Ammeter, key switch, throttle, manual choke, BBC switch, water temp gauge (on liquid-cooled models)
    • Command-Comfort Operator’s Station: Torsion spring suspension seat, fully adjustable, with arm rests
    • “Quick-Fit” in. steering control levers feature incredible range of adjustment for optimal comfort and control
    • 3-Position adjustable deck lift foot pedal allows for easy deck lift for all operators
    • PTO - Electric Clutch: Ogura GT3.5 - 250 ft lb / adjustable air-gap
    • Cutter Decks: 61 in. Velocity Plus. Floating, adjustable, anti-scalping design.
    • Cutter Deck Construction: Tri-Plate, welded with 10 gauge top, 7 gauge skirts, 7 gauge & 11 gauge reinforcement plates.
    • Cutter Deck Drive: Drive shaft driven -- eliminates belt slip for increased reliability & longevity
    • Number of Anti-Scalp Wheels: 9 wheels in 7 positions
    • Cutter Deck Spindles: Scag Heavy-Duty Spindles w/cast-iron housing & tapered roller bearings, backed by 3-year limited warranty
    • Cutter Deck Height Adjustment: Foot pedal lift (3-position adjustable) with self-locking mechanism at transport position
    • Cutting Range: 1 in. to 6 in. in 1/4 in. increments
    • Number of Cutter Blades: 3 Marbain blades
    • Total Length: 87.5 in.
    • Total Width (with discharge chute in mowing position): 73.5 in.
    • Total Width (with discharge chute in transport position) 62 in.
    • Height (with ROPS): 67.5 in.
    • Height (with ROPS folded): 56.5 in.
    • Weight (with ROPS): 1350-1700 lbs.
    • Warranty: 2 Yr. Mower Warranty—Parts & labor.; 3 Yr. Deck Warranty—First & second years parts & labor; third year parts.; 3 Yr. Spindle Warranty—First & second years parts & labor; third year parts.; 2 Yr. Engine Warranty—Minimum two-year warranty covered directly through the individual engine manufacturer.

    Specifications

    Engine
    Engine Manufacturer Kawasaki
    Horse Power 29 hp
    Engine Type Liquid-cooled, V-Twin, horizontal shaft, Digital Fuel Injection
    Displacement 45.5 cu. in. (745 cc)
    General
    Transmission Dual Hydrostatic Drive
    Wheel Size Drive Tires: 24 x 12 - 12, 4 ply; Caster Tires: 13 x 6.5 - 6, 4 ply; Flat-Free, semi-pneumatic
    Fuel Capacity 10 gal., single fuel tank mounted low in the center of the mower to lower the center-of-gravity and improve hillside stability and traction.
    Deck
    Deck Size 61 in.
    Discharge Type Standard: Side; Optional: Bagger, Mulcher

    Compare Models

    		 Print








    Year 2010
    Manufacturer Scag
    Model STT61V-29KA-DFI-SS Turf Tiger™ Zero-Turn Rider
    Style Riding
    Deck
    Deck Size 61 in.
    Discharge Type Standard: Side; Optional: Bagger, Mulcher
    Engine
    Engine Manufacturer Kawasaki
    Horse Power 29 hp
    Engine Type Liquid-cooled, V-Twin, horizontal shaft, Digital Fuel Injection
    Displacement 45.5 cu. in. (745 cc)
    General
    Transmission Dual Hydrostatic Drive
    Wheel Size Drive Tires: 24 x 12 - 12, 4 ply; Caster Tires: 13 x 6.5 - 6, 4 ply; Flat-Free, semi-pneumatic
    Fuel Capacity 10 gal., single fuel tank mounted low in the center of the mower to lower the center-of-gravity and improve hillside stability and traction.
