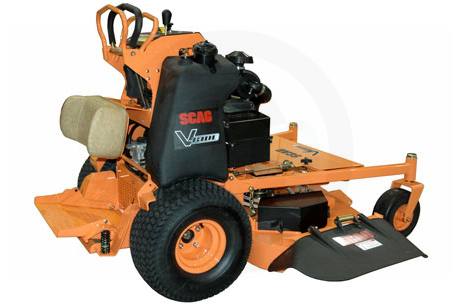

2010 Scag Power Equipment SVR52V-26FX V-Ride™ Stand On Mower
Request a Quote Financing Calculator Financing Form
Request a Quote Financing Calculator Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

The V-Ride™ is an ultra compact, agile, comfortable and stable mowing machine. It combines the speed and comfort of a rider with the space-saving convenience of a walk-behind mower.

Despite its compact size, the V-Ride boasts many full-sized features like hydraulic oil coolers, dual 10cc hydraulic pump and dual 12ci motor drive system, coil-suspension platform, and a heavy-duty steel main frame. Pair a powerful 26hp Kawasaki FX commercial-grade engine with a 52" Velocity Plus™ deck and you have an ideal combination of agility, power and performance.

With a low center-of-gravity and extra-large drive tires, stability is never compromised. The operator rides on a coil suspension platform utilizing 3.5 inch springs to deliver 1.25 inches of bump soaking, back saving travel. The operator comfort pad is fully adjustable to 12 different positions to fit a wide range of operator sizes and riding styles.

This is truly the ultimate stand-on mower with excellent handling, stability and quality. No cut corners, no plastic pulleys, nothing but top quality construction and unmatched performance.

    Product Highlights
    • 52" Velocity Plus cutter deck
    • 26hp Kawasaki FX engine
    • Operator platform has 1.25 " of suspension travel
    • Coil suspension on platform uses 3.5" springs
    • Operator cushion has 12 mounting positions
    • Large diameter, padded steering levers
    • Excellent machine balance and handling
    • Up to 9 MPH ground speed for more productivity
    • Dual, 10cc heavy-duty hydraulic drive pumps
    • Auxiliary hydraulic oil cooler
    • All models are electric start
    • Quick-adjust cutting heights, transport auto-lock
    • Ultra-compact to reduce trailer space usage
    • Heavy-duty Scag blade drive spindles
    Product Details
    • Fits a wide range of professional lawn maintenance needs. Compact size allows more units to fit on a single trailer.
    • Up to 9 MPH forward speeds and 6 MPH reverse speeds keep productivity at a maximum.
    • 52" Velocity Plus™ cutter deck delivers an immaculate quality-of-cut. Three year limited warranty on the cutter deck.
    • Spacious operator platform with coil suspension delivers a smooth the ride and reduces operator fatigue. Springs are with 3.5" long and provide 1.25" of suspension travel.
    • Operator platform is made from heavy gauge steel with extruded star pattern for no-slip footing. The rear portion of the platform is hinged and can be flipped forward to reduce overall machine length on the trailer. Platform is wide and unobstructed.
    • Kawasaki FX series engines are commercial-grade and feature canister air filters, solenoid shift electric starters and twin barrel carburetors.
    • Auxiliary hydraulic oil cooler keeps oil temperatures well within a safe operating level and adds to hydraulic system component life.
    • Scag tough main frame construction delivers solid strength and ensures years of trouble-free service. The main frame was designed for strength and longevity.
    • Ogura GT 2.5 PTO clutch brake engages and stops the cutter blades smoothly and safely. Adjustable airgap ensures long component life.
    • Convenient, full-featured instrument panel has ignition key, PTO switch, Drive & Neutral lever, throttle, choke, and digital hour meter. The fuel gauge is located on top of the fuel tank, right next to the instrument panel for easy viewing.
    • Drive & Neutral lever - When in Neutral, the steering control levers are locked, preventing accidental movement by bumping the controls. In the Drive position, the steering controls have full, complete range for mower operation.
    • Operator Comfort Cushion can be mounted in 12 different positions, fitting a very wide range of operators and riding preferences.
    • Large diameter, padded steering control levers are very comfortable and easy on your hands. The hand force required to control the V-Ride is minimal and the lever action is extremely smooth.
    • Heavy-duty blade drive spindles provide reliable performance season after season. The Scag spindle is more than tough enough to handle the high horsepower and torque requirements of this mower. Three year limited warranty on the spindles.
    • Dual 10cc hydraulic pumps and dual 12ci cast iron high-torque wheel motors provide smooth, positive and reliable power to the drive wheels. Pressure relief valves in the pumps protect the system from internal pressure spikes and add to pump life.
    • 5.5 gallon fuel tank keeps you in the field cutting grass. Fuel tank features a fuel level gauge and an extra large, angled filler neck for easy filling.
    • Interlocked parking brake prevents the mower from being driven with the brake on, stopping premature brake wear.
    • Auxiliary canister air filter system is standard equipment on all V-Ride mowers. This provides increased service intervals and longer engine life.
    • Easily adjust cutting heights with the convenient, easy to lift hand lever. Wide range of adjustment from 1-1/2" to 4-1/2" in 1/4" increments. Auto-lock in transport positon with a simple thumb release.
    • Deck leveling adjustment brackets at all four corners of the deck allows for easy in-the-field deck leveling and pitch adjustment.
    • Tri-Plate cutter deck top is incredibly strong. .485" deck top thickness from three separate layers of steel (7ga., 10ga, and 11ga.)
    • "Split-Steel" pulleys are used on load carrying areas like the cutter deck spindles and pump drive systems. Split steel pulleys are stronger than cast iron or stamped pulley designs. Our pulleys are strong for long life and lightweight for reduced inertia and decreased wear on the cutter deck drive system.
    • Tapered locking hubs are used on spindle shafts and pump input shafts for easy pulley removal and service for years to come.
    • No plastic pulleys - Some [other brands] actually use plastic pulleys on their mowers. Not Scag. All Scag pulleys are made from metal. Plastic is for toys.
    • High-quality bearings and bearing debris guards on idler pulleys ensure long, reliable service.
    • Self-adjusting belt systems effortlessly keep belts in constant adjustment for maximum life and minimum maintenance.
    • Tapered roller bearings are utilized in the front caster wheel axles and caster yoke pivots for durability and reduced maintenance.
    • Extra-large 20x10.5-8 inch drive tires ensure better traction, less turf tearing and easy curb climbing. Drive tires are 4-ply for added durability.
    • 11x4-5 Flat-Free front caster tires are standard equipment and eliminate the downtime associated with flat tires caused by debris, thorns, etc.
    • Four tie-down points are built-in on the front and rear of the mower (2 front, 2 rear) for fast and convenient loading and unloading on trailers.
    • Front weight system (under the front belt cover) can be customized with fewer or additional weights. 52" V-Ride comes standard with one (1) 35lb. weight. Up to three (3) weights total can be installed at one time.
    • Custom-Cut Baffle allows you to customize the cutter deck to your individual cutting conditions.
    • Simple, easy to service, neutral and tracking linkages. It's the same design that we use on other Scag riding mowers. No cable systems or complicated bracketing. Straightforward designs with proven reliability.
    • User-friendly mower design allows access to the engine and filters, for easy maintenance. Engine oil drain hose included.
    • Solid hillside stability due to a low center-of-gravity, large tires and a wide stance.
    • The Scag "Simply the Best" commercial warranty stands behind you and your mower for years of profitable service.
    • Marbain cutter blades stay sharp longer for reduced maintenance.
    • High quality electrical components such as switches, wiring and harness looms are used throughout the Scag mower line for dependable service.
    • Digital SmartSense hour meter displays maintenance reminders to help ensure that routine service is completed.
    • Laser cut, vented rear panel allows for increased air flow and cooling for the hydraulic pump drive system. Blow out debris with compressed air or a blower without having to remove the panel.
    • Sealed fuse holder keeps the elements out to help prevent corrosion and electrical issues.
    • Fuel tank shut-off is located on top of the tank, near the instrument panel for easy access.
    Product Dimensions
    • Length (with foot plate in down position): 71.75"
    • Length (with foot plate in up position): 67.75"
    • Tracking Width: 41.75"
    • Overall Width (chute down): 65.25"
    • Overall Width (chute up in transport position): 53.75"
    • Operating Weight: 860 lbs.
    • Overall Height: 66"

    Specifications

    Engine
    Engine Manufacturer Kawasaki
    Horse Power 26 hp
    Engine Type FX air-cooled, 90-degree V-Twin engine
    General
    Wheel Size Drive Tires: 20x10.5-8 in.; Front Caster Tires: 11x4-5
    Fuel Capacity 5.5 gal.
    Deck
    Deck Size 52 in.
    Discharge Type Standard: Side; Optional: Bagger, Mulcher

    Compare Models

    		 Print








    Year 2010
    Manufacturer Scag
    Model SVR52V-26FX V-Ride™ Stand On Mower
    Style Stand On
    Deck
    Deck Size 52 in.
    Discharge Type Standard: Side; Optional: Bagger, Mulcher
    Engine
    Engine Manufacturer Kawasaki
    Horse Power 26 hp
    Engine Type FX air-cooled, 90-degree V-Twin engine
    Displacement
    General
    Transmission
    Wheel Size Drive Tires: 20x10.5-8 in.; Front Caster Tires: 11x4-5
    Fuel Capacity 5.5 gal.
